Installation Instructions Floor Soundproofing Solution 1 to Meet New Part E Building Regulations

Soundproofing Flooring Application

The following construction details have been tested and found to be in complinace with New Part E Building Regulations. The method detailed is as tested but certain medifications may be nessesary in certain non standard circumstances.

Sound Reduction Tested Performance

Airborne:	70 RwdB		60 RwdB+Ctr
Impact:		46 LnwdB

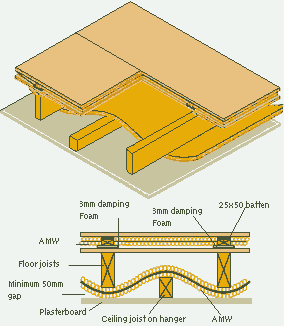

• Components and Fixing Data: 1 x 18mm T&G Chipboard (laid on)
• Resilient Tape (on)
• 25 x 50mm Timber Battens (at 400mm centres on)
• 3.5mm Neoprene Pads (on)
• 52mm Acoustic Quilt (between battens)
• 18mm Chipboard (screwed to)
• Timber Joists (240 x 48mm at 400mm centres. Joist size to suit application)
• 52mm Acoustic Quilt (beneath joists)
  Independant Ceiling:
• Timber Joists (100 x 48mm on hangers at 400mm centres)
• 1 x 15mm Plasterboard (screwed to independant joists)

  soundproofing fitting instructions

  Floor should be swept and cleaned and checked for loose/damaged boards that must be replaced and properly screwed down. A caulking/sealing acoustic compound should be used to seal any air gaps and areas between the floor and skirting boards. battens should be cut to length (try to keep single lengths if possible) acoustic damping foam should be stuck to the batten and then layed down on the floor at maximum of 400mm distance.

  Technical Data:

  Mass per Unit Area:		76.2Kg/m²
  Footprint Width:		377mm
  Fire Protection:		30 minutes (2 layers plasterboard = 60 minutes)



  graph data airborn

  frequency	50	63	80	100	125	150	200	250	315	400	500	630	800	1000	1250	1500	2000	2500	3150	4000	5000
  reduction	25.4	37.2	39.0	42.5	47.9	53.9	55.3	61.4	63.9	67.1	70.0	71.8	74.5	77.5	79.5	79.9	77.4	78.0	80.1	80.4	82.5


  graph data impact
  frequency	50	63	80	100	125	150	200	250	315	400	500	630	800	1000	1250	1500	2000	2500	3150	4000	5000
  reduction	59.8	55.7	56.8	60.1	54.9	55.1	51	46.0	43.0	39.9	36.5	32.6	29.0	24.5	19.4	12.6	9.0	6.2	4.1	3.8	3.6
