Soundproofing Solutions to Meet New Part E Building Regulations

Separating Wall / Double Timber Stud / 52 RwdB+Ctr

Application

Sound Reduction Performance	Airborne:	62 RwdB
				Impact:		52 RwdB+Ctr
Part E Acoustic Requirement
				New Build	45 RnTw+CtrdB
				Refurbishment	43 RnTw+CtrdB

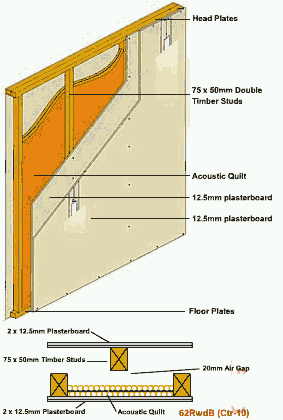

  • Components and Fixing Data: 2 x 12.5mm Plasterboard (screwed to)
  • 75mm x 50mm Timber Studs (at 600mm centres)
  • 52mm Acoustic Quilt (Between studs)
  • 20mm Clear Cavity
  • 75mm x 50mm Timber Studs (at 600mm centres)
  • 2 x 12.5mm Plasterboard (screwed to studs)

    Technical Data:

    Mass per Unit Area:		46.4Kg/mē
    Footprint Width:		220mm
    Fire Protection:		60 minutes


    SOUNDPROOFING UPRATING:

    Adding our Acoustic Membrane between 2 layers of 12.5mm plasterboard will improve the above system by between 8-10dB Adding Resilient Bars to at least one side will improve the above system by around 3-5dB

    graph data airborn
