Soundproofing Solutions to Meet New Part E Building Regulations

Separating Wall / Independant Metal C Stud / 50 RwdB+Ctr

Application

Sound Reduction Performance	Airborne:	58 RwdB
				Impact:		50 RwdB+Ctr
Part E Acoustic Requirement
				New Build	45 RnTw+CtrdB
				Refurbishment	43 RnTw+CtrdB

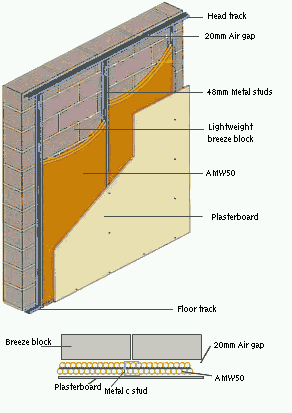

  • Components and Fixing Data: 100mm Lightweight Block Wall
  • (painted on one side) 20mm Clear Cavity
  • 48mm Metal C Studs (at 600mm centres)
  • 52mm Acoustic Quilt (between studs)
  • 1 x 12.5mm Plasterboard (screwed to studs)

    Technical Data:

    Mass per Unit Area:		76.1Kg/mē
Footprint Width:		180.5mm
Fire Protection:		N/A

    graph data
50	23.2
63	23.2
80	26.9
100	34.5
125	36.2
150	43.6
200	45.7
250	47.1
315	49.3
400	53.9
500	56.8
630	60.6
800	63.5
1000	66.1
1250	67.0
1500	68.3
2000	69.4
2500	69.8
3150	68.2
4000	71.3
5000	74.2
