SOUNDPROOFING ACOUSTIC MINERAL WOOL

amw2 soundproofing material

For effective reduction of airborne noise through floors!

Introduction

The density of Soundproofing Acoustic Mineral Wool is more than twice that of normal loft insulation and so is very efficient at absorbing noise. Acoustic Mineral Wool (AMW) is used extensively in buildings and throughout industry to give acoustic, thermal and fire insulation. It is particularly useful as a sound absorbing infill for the reduction of airborne sound between flooring joists, suspended ceilings, studwall partitioning and with our Resilient Bars.

General Soundproofing Description

Soundproofing AMW consists mainly of silicon oxide together with a number of other metallic oxides. It is non-flammable, chemically inert and is not adversely affected by any substance it may come into contact with. Random arrangement of fibres ensures no water penetration in any direction. It is rot-proof, non-hygroscopic, does not sustain vermin and will not encourage the growth of fungi, moulds or bacteria. It will not react with wired plastic or metal wall ties, brickwork or masonry.

Product Range

AMW 50 50mm thick Acoustic Mineral Wool 1200 x 600mm
AMW 75 75mm thick Acoustic Mineral Wool 1200 x 600mm
AMW100 100mm thick Acoustic Mineral Wool 1200 x 600mm

General Physical Data

Flammability BS476 Part 4 (1970)	Non-combustible
Building Regulations			Class O
					In some situations, there is a requirement for
					party/compartment floors to  achieve a one hour fire
					rating.  If AMW100 is supported by 25mm chicken wire
					mesh stapled to joist sides, the insulation will provide
					a one hour fire rating.

Acoustic Performance			AMW typically provides a reduction in reverberant noise
					levels of up to 10dB when fitted under roof constructions
Sound Absorption coefficients		The graph below shows typical sound reduction obtainable under test conditions
Slab Size:				approx. 1200mm x 600mm
Thickesses:approx.			50mm, 75mm and 100mm
Weight:
		50mm:			3.25Kg/m
		75mm:			4.75Kg/m
		100mm:			6.25Kg/m
Density:				60Kg/m
Thermal Conductivity:			0.033W/mK

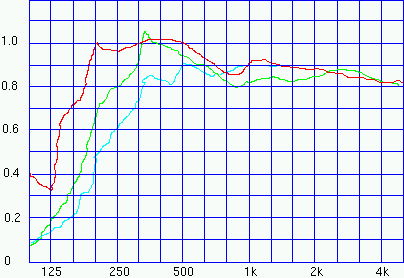

amw2 soundproofing characteristics graph
__ 100mm
__ 75mm
__ 50mm

Noise reduction applications

Key Soundproofing Benefits
