Steelsorption - Sound Absorbing Wall Panels

STEELSORPTION sound absorbing perforated wall panels are high specification acoustic panels designed to extensively reduce noise nuisance and reverberation in industrial working environments. They are the practical solution to your sound control requirements and are durable, fire resistant, strong and their sound absorbing qualities offer excellent acoustic performance.

Noise control Applications

These highly efficient sound absorbing panels are designed for easy installation into factories, workshops, plant rooms, test bays and many other industrial working areas where a high degree of noise may be generated.

Key Benefits

• Excellent acoustic performance
• Simple to fit
• Extremely durable

  General Physical Data

  Dimensions - Wallsorption : 2500 x 300 x 25mm
  Thickness 		25mm  (50 and 100mm available on request)
  U Channel Fixing Trims 	: 	2500mm long
  Nominal Weight 	: 	4kg/m2
  Standard Colours 	: 	Galvanised or White (Other colours may be available on request)
  Fire Rating 	:
  	Perforated Steel 		Non-combustible
  	Acoustic Mineral Wool 	: 	Non-combustible
  	Acoustic Foam 		Class 1

  Acoustic Performance

   Sound Absorption

  Frequency (Hz)    125    250     500       1k      2k         4k
  35mm              0.08   0.21    0.45      0.71    0.82       0.91
  Frequency (Hz)
  		25mm thick Steelsorption
  25mm thick Steelsorption
  with 100mm airgap
  50mm thick Steelsorption
  100mm thick Steelsorption





  FITTING INSTRUCTIONS

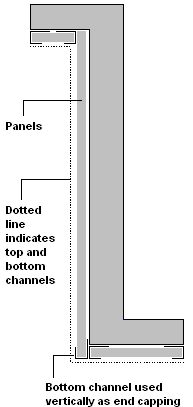

  Sound absorbing perforated acoustic steel panels for walls. acoustic sound absorbing perforated steel panels industrial working areas workshops and factories Fixing Details - Plan View Installation

  WALLS

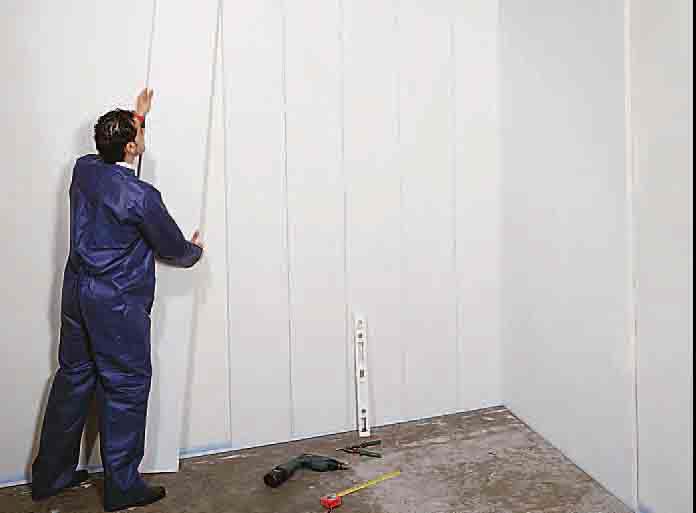

  Use a spirit level to align all horizontal and vertical surfaces. Odd leg 'U' channels are plugged and screwed to the wall at the top and bottom of where the panels are to be fixed. Insert each panel into the bigger top channel, push the panel flush to the wall then drop into the bottom channel. Use bottom channel sections as capping to cut ends and pop rivet or screw into place as required.



  CEILINGS

  Odd leg 'U' channels are plugged and screwed to the soffit. Insert the panel into the bigger top channel and push the panel flush to the soffit and slide into the smaller bottom channel. Use bottom channels as capping to exposed cut ends and use pop-rivets or screws to hold capping and panels in position.

  CUTTING

  Perforated metal panel facing can be cut with metal snips and a sharp knife will cut the insulation core.

  MAINTENANCE

  Panels can be wiped with a clean cloth.
